Repair Kits 威爾頓隔膜泵修理包

每個流體包和空氣包可以應用于許多不同泵型号。

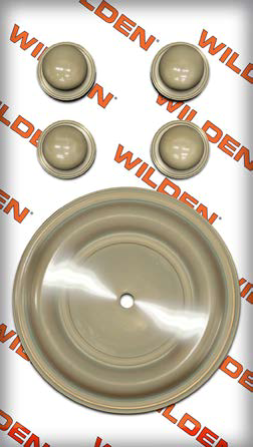

                                                      威爾頓流體包

流體包隻包含彈性體如：隔膜，閥球，閥座，墊圈和O型圈。流體包不包含氣閥ADS部件，以消除部件重複。

​​​

                                                                  KIT, WET, AA/B/C/DDD

配置  (B)
O = ORIGINAL
A = ADVANCED
D = ADVANCED “FIT”
H = HIGH PRESSURE
S = STALLION
F = BRAHMA (FLAP VALVE) C = COMBO*
尺寸 (AA)
0.5 = 13 mm (½”) 1= 25 mm (1”)
1.5 = 38 mm (1½”) 2 = 51 mm (2”)
3 = 76 mm (3”)
泵的材質 (C)

M = ALL METAL PUMPS

 A = ALUMINUM ONLY**

S = SS/ALLOY C ONLY**

​P = ALL PLASTIC PUMPS

*組合套件适用于原泵和高級泵(高級配合不包括在内)**

**1.5 "和3 "鋁和不鏽鋼先進泵都需要獨特的套件

DIAPHRAGMS隔膜 (DDD)
PTFE
LEL = PTFE EPDM BACKED, IPD
TEU = PTFE w/EPDM BACK-UP
TNU = PTFE w/ NEOPRENE BACK-UP
TSU = PTFE w/ SANIFELX™ BACK-UP
2TSS = FULL STROKE PTFE w/ SANIFLEX™ BACK-UP 2TWS = FULL STROKE PTFE w/WIL-FLEX™ BACK-UP 3THU = PTFE w/ HIGH TEMP BUNA-N BACK-UP
TPE
FSS = SANIFLEX™ (Cream)
FWS = E-Z INSTALL SANITARY WIL-FLEX™ PUS = POLYURETHANE (Clear)
WFS = WIL-FLEX™ (ORANGE DOT)
2ZGS = E-Z INSTALL GEOLAST
2ZSS = E-Z INSTALL SANIFLEX™ (Cream)
2ZPS = E-Z INSTALL POLYURETHANE (Clear) 2ZWS = E-Z INSTALL WIL-FLEX™ (Orange Dot)
RUBBER
BNS = BUNA-N (Red Dot)
NES = NEOPRENE (Green Dot)
EPS = EPDM (Blue Dot)
FBS = SANITARY BUNA-N
FES = SANITARY EPDM (Two Blue Dots)
VTS = VITON® (White Dot)
XBS = CONDUCTIVE BUNA-N (Two Red Dots) 2BNU = BUNA-N, ULTRA-FLEX™ (Blue Dot) 2EPU = EPDM, ULTRA-FLEX™ (Blue Dot)
2NEU = NEOPRENE, ULTRA-FLEX™
2VTU = VITON®, ULTRA-FLEX™

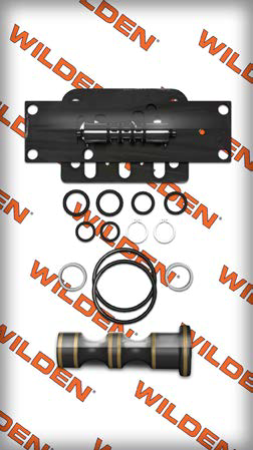

威爾頓空氣包
空氣組件包括空氣閥閥芯，并且隻能在空氣組件*中使用。所有的空氣組件都是真空密封的。
* T系列将提供完整的空氣閥總成。
 KIT, AIR,AA/BB/C/D/E/F
氣閥材質 (E)
B = BRASS AIR VALVES3
M = METAL AIR VALVES
P = PLASTIC AIR VALVES
R = ANODIZED ALUMINUM AIR VALVES D =  BRASS AIR VALVES
WITH OIL BOTTLE3
 空氣分配系統(AA) T =  TURBO
P = PROFLO
PX = PROFLO X
PS = PROFLO SHIFT
H = HIGH PRESSURE
 配置  (C)

A = ADVANCED AND ADVANCED FIT

O = ORIGINAL

F = FLAP
C = COMBO1

泵體材質  (D)

M =金屬泵

P = 塑料泵
C = COMBO2

 型号尺寸(BB)

 0.5 = 13 mm (½”)

1= 25 mm (1”)
1.5 = 38 mm (1-1½”) 2 = 51 mm (2”)
3 = 76 mm (3”)
4 = 102 MM (4”)
 選擇(F)
S =  單點排氣（潛水）
